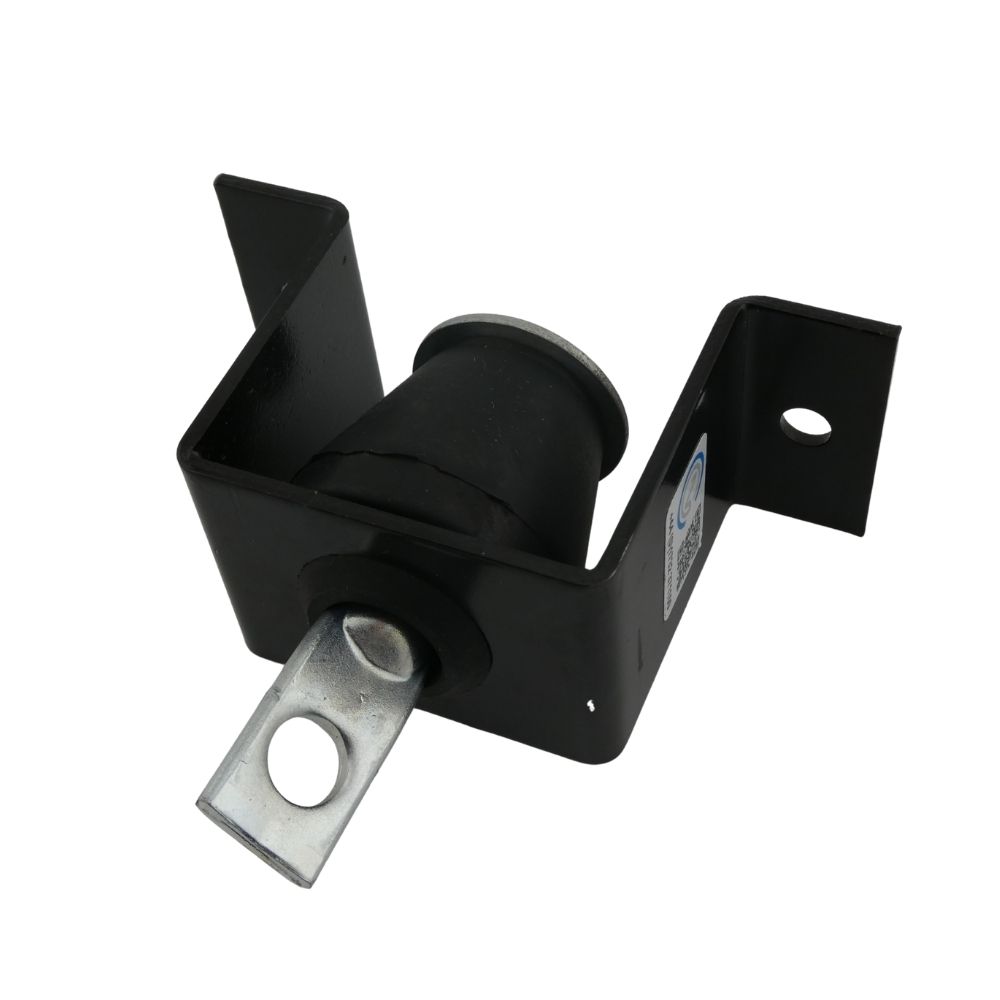

Acoustic Ceiling Hangers Type LHRH


Designed specifically for applications where audible noise attenuation is of most concern, the LHRH offers a low cost alternative to larger more
traditional spring and rubber hangers.

Primarily used to effectively decouple mass acoustic ceilings from the supporting building structure - thus preventing noise breakout or break-in.

  • Epoxy powder coated steel frame tested to 5 x rated load. Other steel parts are zinc plated.
  • Rubber hangers supplied with failsafe steel overload washers.
  • Capable of up to 15° angular misalignment.
  • Can be fitted in drop rod or direct to the supporting structure.
  • Low Height Rubber Hangers have natural rubber elements with deflections up to 6 mm.
  • Acoustic Ceilings.

There are no application notes for this product.
