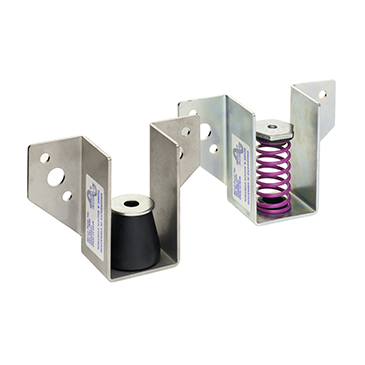

Spring and Rubber Acoustic Ceiling Hangers Type LSH and LRH


A comprehensive range of steel spring and rubber acoustic ceiling
hangers, offering the designer a choice between low frequency
vibration isolation or optimum performance at higher audible
frequencies, if noise control is of paramount importance.

  • Epoxy powder coated steel frame tested to 5 x rated load. Other steel parts are zinc plated.
  • Rubber hangers supplied with failsafe steel overload washers.
  • Capable of up to 15° angular misalignment.
  • Can be fitted in drop rod or direct to the supporting structure.
  • Colour coded helical steel springs to BS1726 Class B with nominal deflections up to 20 mm
  • laterally stable with 50% overload capacity.
  • All steel components are zinc plated.
  • Rubber hangers have natural rubber elements with deflections up to 6 mm.
  • Acoustic Ceilings.

There are no application notes for this product.
