Inertia Pouring Frames Type IPF


Inertia Pouring Frames have been developed for use with machines which produce high levels of vibration or those which are subjected to external forces or are simply unstable when mounted directly on spring or rubber mountings.

The use of Type IPF concrete filled steel frames allows high deflection/low stiffness mounting systems to be used giving extremely high vibration isolation without excessive motion.

  • Fully welded steel construction with integral concrete reinforcement fixed at 40 mm above bottom of frame.

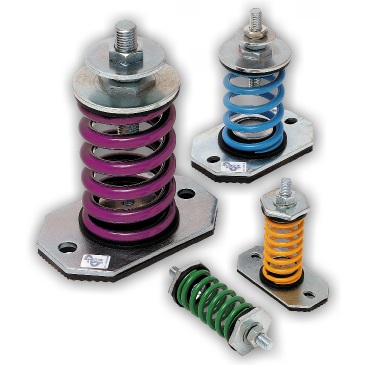

  • Standard recessed height reducing corner brackets to suit Type OS Open Spring and ECS Enclosed Spring mountings or cantilever design for larger mountings.
  • Frames can be manufactured for 25 mm and 50 mm deflection mountings and 3 to 4 mm deflection Studflex rubber pads.
  • Large range of standard sizes in three depths 150
  • 200 and 300 mm and frame lengths not greater than 12 x depth unless additional mountings are fitted.
  • Any size designed to order with larger units supplied in bolt together “on site” sectional form.
  • Finished with a single coat of anti corrosive primer on external surfaces only or special finishes to order.

There are no typical applications listed for this product.

There are no application notes for this product.

Heron Tower, London.

Case Study

Isolated Equipment 3 No. FG Wilson P2250X Generating Sets in plant rooms at Levels 42 & 43. Mass = 15116kg per Generating set.

Read More
Data Centre, UK

Case Study

Application : Three Generator Sets for Data Centre emergency power Location : 1st Level Plant Room (200 mm thick supporting structure) Installation : MTU 20V4000 Generator Set
