Shock Mounts Type Y

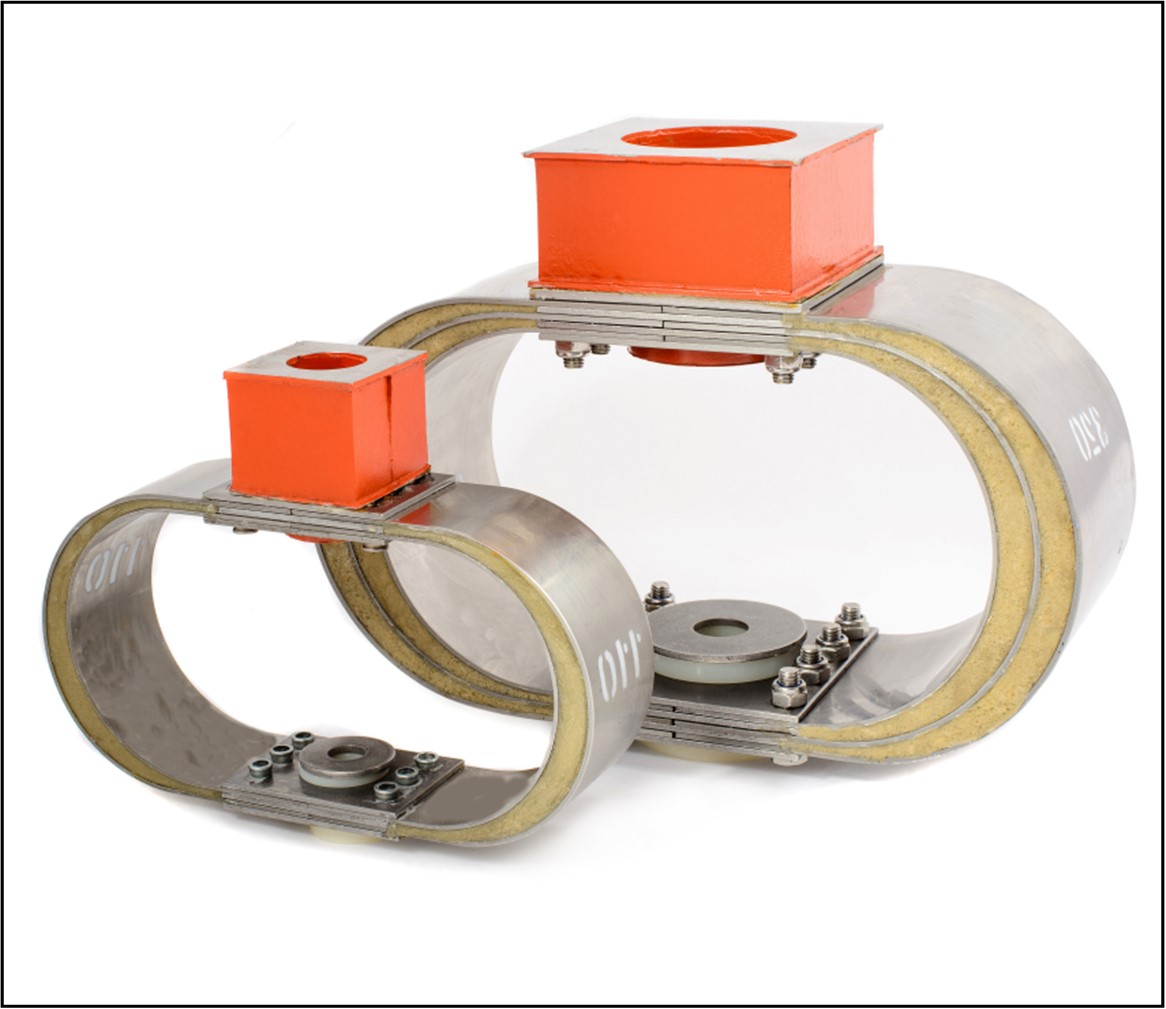

The type `Y’ mount is an significant improvement on the original type `X’ mount design providing improved high frequency attenuation.

The `Y’ adds the addition of a rubber moulding on top of the mounting which forms both accelerator and decelerator units.  This also acts as a high frequency isolator providing an improvement in `noise’ attenuation over the type `X’ mounting.



  • Manufactured in stainless steel with high impact nylon washers for fixing bolts.
  • Two different horizontal stiffness axes enable optimum system characteristics and vibration isolation to be achieved using careful orientation of the mountings.
  • Each isolator individually stencilled with nominal load on outer casing for easy identification.
  • Static Deflections of up to 8 mm with loads from 6 kg to 450 kg.
  • Control Panels.
  • Axial and Centrifugal Fans.
  • Air Handling Units.
  • Refrigeration Plant.
  • Pumps and Compressors.
  • Electrical Cabinets/Panels.
  • Isolation of Sensitive Equipment.
  • +2.6 mm allowable tolerance on dimension ‘C’ free height.
  • Optimum system stiffness characteristics can be achieved by careful orientation of individual isolators.
  • Optional soleplate is available to facilitate installation on resin chocks.
  • We recommend that all fixing bolts used are high tensile Grade 8.8 or higher.
  • All connections to and from isolated machine must include flexible lengths, not only to prevent transmission of vibration through the connections and allow the system freedom of movement, but also to avoid possible failure of the connections.
Trident / Triton - RotoTug

Case Study


Operator : Seabulk Towing Main Engines: 3 No. Caterpillar 3512C propulsion engines Christie & Grey Mountings: TSC T10 isolators Engine Operating Speed : 1200 rpm Calculated Vertical Isolation Efficiency : 96+ %
