Shock Mounts Type J Mount A, & J Deck Mount

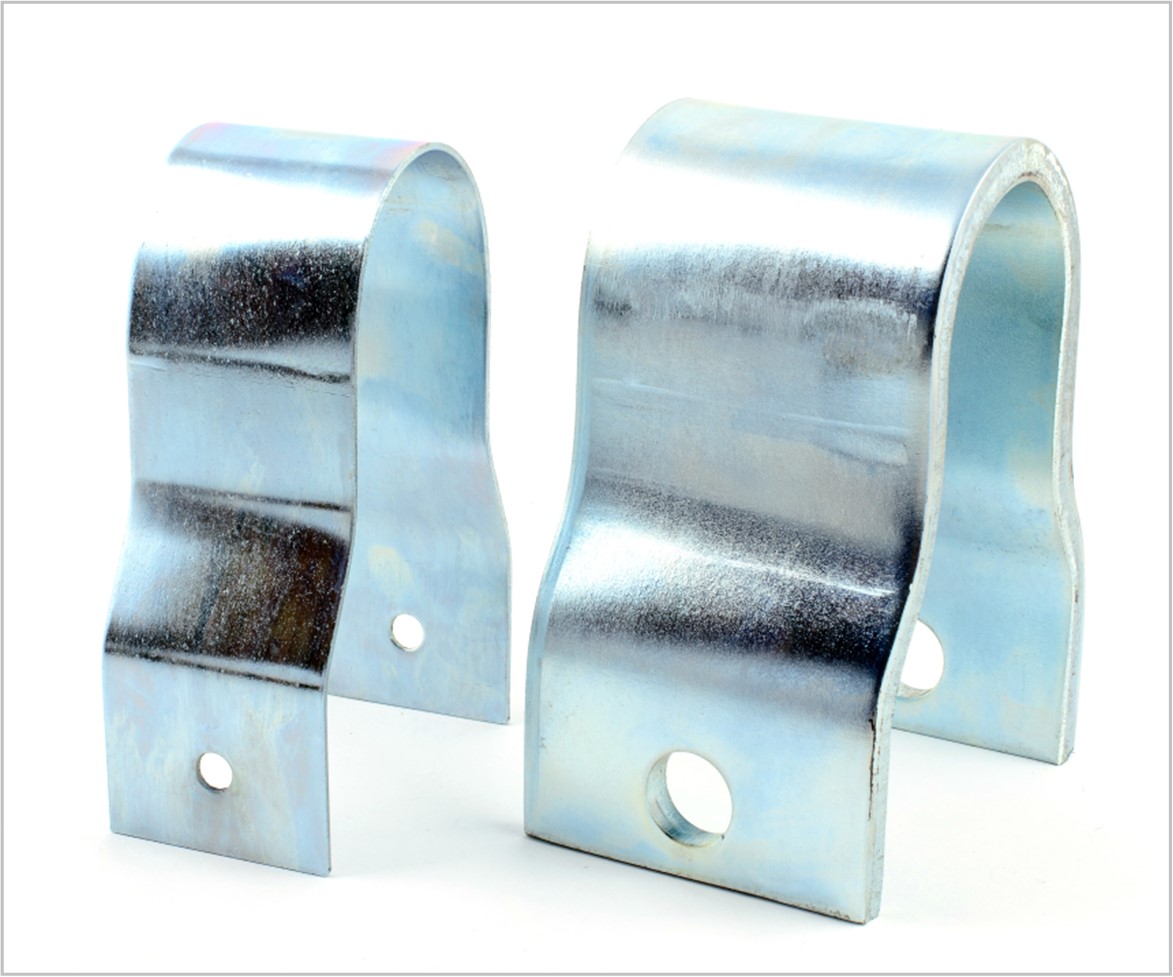

The J mount is a curved metal strap specially designed to be a self contained mount that yields at a predetermined load.

Request a quote Further information
  • J Mounts are self contained and need no additional mountings
  • such as decelerator units.
  • J Mounts are inexpensive and require little maintenance.
  • J Mounts have a galvanised surface finish for protection against corrosion.
  • Used for marine applications which do not need to be realigned with other equipment after a shock event.
  • Robust Electrical Equipment
  • Switchgear and Control Panels
  • Other Small Electrical Panels
  • We recommend that all fixings bolts used are high tensile Grade 8.8 or higher.
  • All connections to and from isolated equipment must include flexible lengths, not only to prevent transmission of vibration through the connections and allow freedom of movement, but also to avoid possible failure of the connections.
