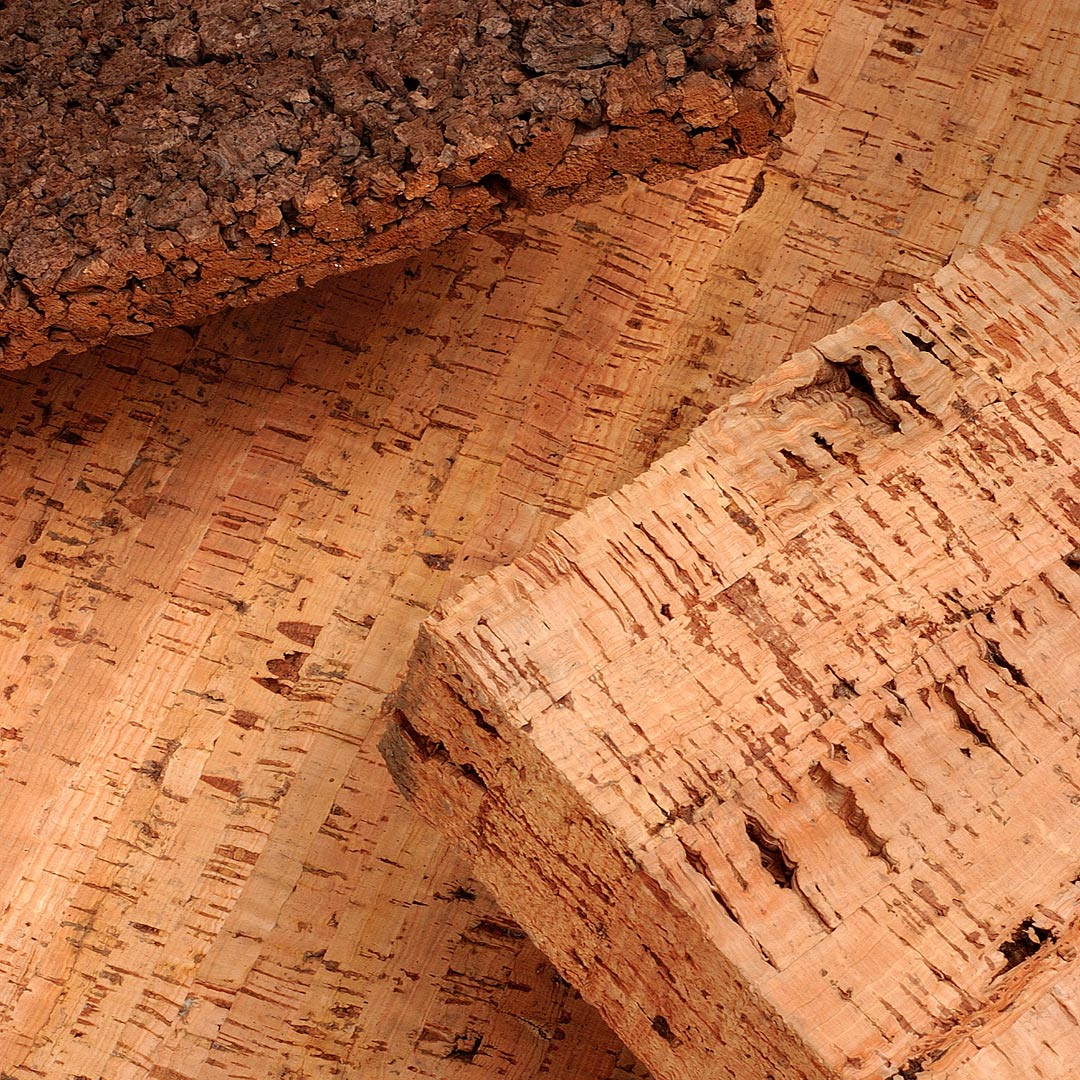

Natural Cork Area Isolator
Type Coresil®
Effective and widely approved anti-vibration material designed for large high load applications where isolation of medium to high frequency noise and vibration is required. Established material for printing press isolation.
More Information
- Standard 50mm thickness (25mm available)
- Max static load: 10,750 kg/m² (Standard), 38,000 kg/m² (High Density)
- Max static deflection ~1.0mm per 50mm thickness
- Natural cork construction
- Not suitable for decorative purposes
- Printing presses (Telegraph, The Sun, etc.)
- Large high load applications
- Medium to high frequency isolation
- Industrial machinery
